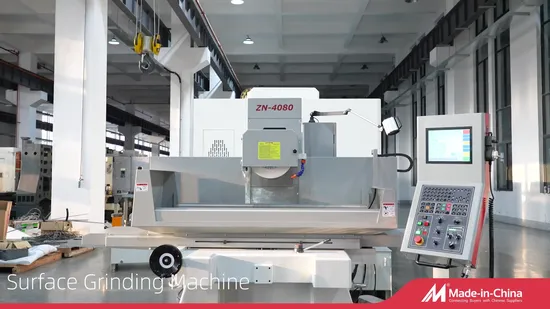

High Precision Column Moves CNC Surface Grinder, Surface Grinding Machine M60160

Basic Info.

Model NO.	M60160
Application	Metal
Process Usage	Metal-Cutting CNC Machine Tools
Movement Method	Point to Point Control
Control Method	Open-Loop Control
Numerical Control	CNC/MNC
Processing Precision	0.01~0.02(mm)
Performance Classification	High-End CNC Machine Tools
Certification	CE, ISO 9001
Condition	New
X×y Travel	800×500
Table Size	1000×500
Spindle Rpm	10000/12000
Capacity of Atc	24
Transport Package	Seaworthy
Specification	15CBM
Trademark	Zhongnan
Origin	China
HS Code	8457101000
Production Capacity	3000sets/Year

Packaging & Delivery

Package Size2250.00cm * 2200.00cm * 2100.00cm Package Gross Weight1000.000kg

Product Description

Company Profile
Nantong Zhongnan Intelligent Technology owns Zhongnan CNC technology, Zhongnan Intelligent, Xinsheng CNC technology and other subsidiaries such as foundry factory. Since its establishment in 2000, Zhongnan started with producing surface grinding machines, and gradually developed into high-end CNC machining center and manufacturing with production lines of CNC vertical machining center, high-precision gantry machining center, horizontal machining center, CNC vertical and horizontal milling machines, Zhongnan is one of the reputed manufacturers covers full production lines in the metal cutting machines industry in China. The products of the group company are widely used in defence industry, aerospace, automobile, green energy, mold and other fields of manufacturing.Zhongnan Intelligent Technology has a production park covers 100,000 square meters. There are more than 380 employees, 30 senior engineers, and 20 R&D engineers. Production capacity covers the entire production chain of casting manufacturing, machining, painting, assembly, commissioning, inspection, etc.

100,000 square meters factory.

Factory Workshop Show

Metal workshop 1 Metal workshop 1 Painting workshop

Assembly workshop 1 Assembly workshop 2 Machines ready in stock

BRIEF INTRODUCTION Zhongnan produces and supply CNC surface grinding machine from small size up to big size.
Overall layout of the machineThe front, rear, left and right, and up and down axes are all operated automatically. The feed value and feed times can be preset and the machine will stop automatically after the work is completed.High rigidity casting bodyThe casting body has been analyzed and calculated by finite element method, and the column is designed with honeycomb reinforcement, which has excellent rigidity.Fully supported working table structureThe working table adopts fully supported box guideway structure, combined with hand scraping, to ensure stable motion and grinding precision.Independent hydraulic systemSingle-cylinder drive, combined with design of an independent hydraulic system, the working table has multiple adjustable speed of 5-25m/min and low vibration characteristics, suitable for various purposes of machining.High-precision flanged spindleEach spindle of our company is completely assembled in a temperature-controlled and dust-free workshop. Under such strict production conditions, the spindle is less affected by temperature changes, has low noise and no vibration, and can provide years of service without any problems. This machine uses flange type spindle, with P4 grade precision bevel ball bearing, V3 grade low vibration motor and dynamic balance, it is installed on the machine head base to ensure that the deflection of the spindle is far less than 0.002mm.Graphical operation panelThe operation panel adopts a fixed design, and the control is completely concentrated on the operation panel, which conforms to ergonomics: the operation panel adopts a graphical design, the functions are clear at a glance, and the operation is easy to learn.

Parameters of M60160 with table moves.

Type	Name	Unit	M60160
Working capacity	Working table dimension(L×W)	mm	1600×600
	Left-right travel	mm	1800
	Front-back travel	mm	660
	Max load capacity	kg	1100
	Max. distance from grinding wheel center to table	mm	850
Working table and front and back feed	T slot of working table	mm	3×16
	Feed speed of working table	mm/min	7-25
	Front-back automatic feed rate	mm	0.1-10
	Ront-back rapid feed speed	mm/min	1200
Up-down feed	Min up-down feed of handwheel	mm	0.001
	Up-down automatic feed rate	mm	0.001-0.02
	Up-down rapid feed speed	mm/min	750
Grinding wheel spindle	Power	HP	10
	Grinding wheel: outer diameter × inner diameter × thickness	mm	Φ400×20~50×127
	Rotation speed	rpm	50hz:1450 60hz:1740
Motors	Front-back motor	w	2200
	Up-down motor	w	2200
	Hydraulic motor	hp	7.5
	Flushing motor	hp	1/4
Dimension	Length	mm	4500
	Width	mm	2600
	Height	mm	2600
Total weight		kg	8000
Rated power		kw	15
