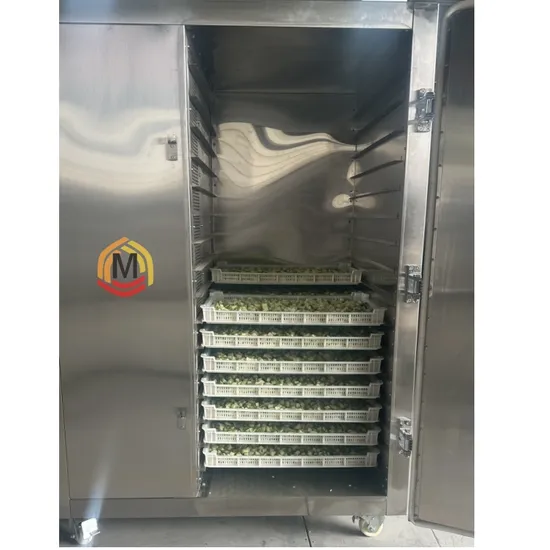

Vegetable and Fruit Processing Dryer Oven for Apples and Bananas with Engine as Core Component

• Overview
• Product Description
• Working principle
• Product Characteristics
• Product Parameters
• Product Details
• Accessories
• Application products
• Workshop exhibition

Overview

Basic Info.

Model NO.	MS-8P
Type	Dryer
Voltage	380V
Power	9kw
Customized	Customized
Material	304 Strainless Steel/Color Steel
Door Structure	Single Door, with High Temperatur
Drying Temperature	Room Temperature -90ºC
Hot Air Circulation	Layer Blowing
Insulation Materials	Polyurethane/Rockwool
Applicable Products	Fruits, Vegetables, Medicinal Materials, etc.
Loading Area	10 Square Meter
Control Method	PLC Intelligence Touch Screen
Circulation Fan	0.37kw*2
Dehumidification Fan	0.37*1
Delivery Time	1 Month
Matching Tray	32,735*435*60mm
Advantage	Energy Saving, More Uniform Layer Blowing
Keywords	Drying Oven/Dryer Machine
Temperature and Humidity Control	Automatic Control
Transport Package	Carton
Specification	1.4*1.1*2.1m
Trademark	Merson
Origin	China
HS Code	8514199000
Production Capacity	100-300kg/Batch

Product Description

Product Description

Working principle

PRINCIPLE OF OPERATIONThe air circulation system of the hot air circulation oven adopts a fan circulation air supply method, and the air circulation is uniform. The air source is driven by the circulating air supply motor (using a contactless switch) to drive the wind wheel through the heater, and the hot air is sent out through the air duct to the inner room of the oven, and then the used air is sucked into the air duct to become the air source for recirculation and heating, ensuring the uniformity of the indoor temperature.Product CharacteristicsMachine FeaturesThe electric oven adopts advection/through-flow heating, so the materials can be heated evenly, with high drying efficiency and more uniformity. Equipped with an intelligent dehumidification system, when the humidity reaches the set value, the fan will automatically turn on to dehumidify; when the humidity is lower than the set value, the fan will be turned off, and the hot air will be recycled to save more electricity.

Product ParametersWe can provide customized servicesYou can choose the inner size of the oven and the number of layers according to the materials you want to bake. When customizing the oven, just tell us the characteristics of the materials you need to bake and the amount of baking at one time, and we will recommend an oven suitable for you.

Product model	MS-32 Double box	Power	9KW
Drying size	1.4*1.1*2.1m	Drying tray	32 trays 735*435*60mm
Loading area	10m²	Control method	PLC intelligent touch screen
Temperature and humidity control	Automatic control	Drying temperature	Normal temperature ~90°C
Circulation fan	0.37kw*2	Dehumidification fan	0.37kw*1
Box insulation	Polyurethane ,Color steel Rock wool. 201 stainless steel

Product Details

AccessoriesDifferent configuration solutions can be provided according to product requirements

Application productsThe oven has a wide range of uses and is used in electronics, motors, communications, electroplating, plastics, hardware chemicals, food, printing, pharmaceuticals, PE boards, powders, impregnation, spraying, glass, ceramics, wood building materials, curing of oil black, drying of paint films, drying, tempering, preheating, shaping, processing, etc..

Workshop exhibition
